Industrial Bellows

Ash Line Rectangular Bellows specifications include ²: - Material: Made from stainless steel, ensuring durability and resistance to corrosion. - Surface Treatment: Galvanized, providing additional protection against rust and wear. - Size: Available in different sizes to fit various applications, with customizable options also available. - Color: Silver, giving it a sleek and professional appearance. - Usage: Primarily used for industrial applications, including ducting, piping, and machinery protection. - Temperature Resistance: Can withstand temperatures up to 600C, making it suitable for high-heat environments. - Pressure Resistance: Designed to handle pressures ranging from 1 bar to 25 bar. - Shape: Rectangular, allowing for efficient use in tight spaces and specific applications. - Features: High-quality raw materials, robust construction, and reliable performance. - Applications: Used in various industries, including construction, manufacturing, automotive, and more. Some manufacturers offer customization options, such as ³: - Custom Sizes: Tailored to fit specific requirements. - Material Variations: Different materials, like rubber or nylon, for unique applications. - Specialized Coatings: Additional coatings for enhanced durability or resistance. When selecting Ash Line Rectangular Bellows, consider factors such as ´: - Temperature Range: Ensure the bellows can withstand the operating temperature. - Pressure Rating: Choose a bellows that meets the pressure requirements of your application. - Material Compatibility: Select a material that resists corrosion and degradation in your specific environment.

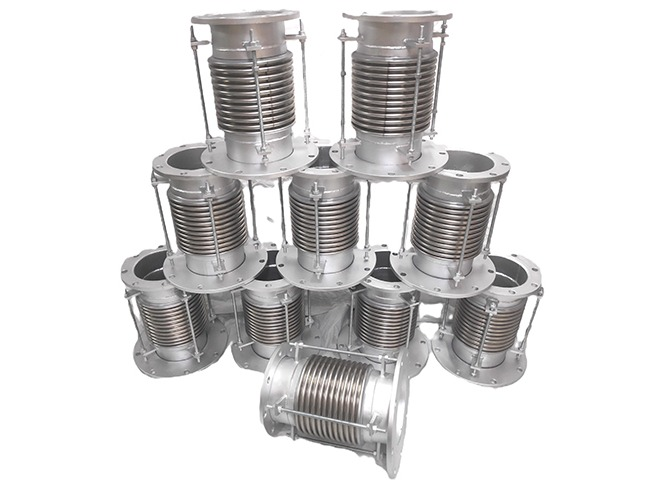

Function: Specifically designed to manage axial movement, where the pipe expands or compresses along its longitudinal axis. Internal Lugs/Rods: The "inside lugs" (or internal tied rod design) act as limiters, preventing the bellows from extending beyond their design limits, thus preventing failure. Design: Consists of a single flexible metal convoluted section (e.g., stainless steel, Inconel) welded to end fittings, which can be flange or pipe ends.

Axial Type Ash Line Bellows specifications include: Key Specifications- Material: Typically made from stainless steel, carbon steel, or other materials suitable for high-temperature and abrasive applications. - Design: Axial type design allows for expansion and contraction in the axial direction. - Size: Various sizes available to fit different ash line diameters and applications. - Pressure Rating: Designed to withstand specific pressure ranges, depending on the application. - Temperature Range: Suitable for high-temperature applications, often up to 1000C (1832F) or more. Applications- Power plants: Used in power plants to handle ash and other combustion byproducts. - Industrial processes: Used in various industrial processes, such as cement, mining, or chemical processing. - Ash handling systems: Used to convey and contain ash and other abrasive materials. Benefits- Compensates for movement: Absorbs thermal expansion and contraction, reducing stress on equipment. - Reduces vibration: Helps to reduce vibration and noise in ash handling systems. - Durable construction: Designed to withstand harsh industrial environments. Design Considerations- Material selection: The choice of material depends on the specific application, temperature, and chemical resistance requirements. - Design pressure: The bellows design must be able to withstand the operating pressure and provide a reliable seal. - Movement and vibration: The bellows design must be able to accommodate movement and vibration in the ash handling system.

Material Stainless Steel Size 3/4 inch Temperature up to 420 deg C Pressures 0.1 to 6 Mpa Country of Origin Made in India Availability In Stock We are a noted manufacturers and suppliers of Flexible Hoses & Hoses Assemblies. Reckoned for durability and dimensional accuracy, our range is used for various hydraulic and pneumatic applications in various industries

Axial Type Genset Exhaust Bellows specifications include: Key Specifications- Material: Typically made from stainless steel, carbon steel, or other high-temperature resistant materials. - Design: Axial type design allows for expansion and contraction in the axial direction. - Size: Various sizes available to fit different genset exhaust system diameters and applications. - Pressure Rating: Designed to withstand specific pressure ranges, depending on the application. - Temperature Range: Suitable for high-temperature applications, often up to 800C (1472F) or more. Applications- Genset exhaust systems: Used in genset exhaust systems to provide flexibility and absorb vibration. - Power generation: Used in power generation applications, including diesel gensets and gas gensets. - Industrial settings: Used in various industrial settings, including manufacturing, construction, and oil and gas. Benefits- Reduces stress: Absorbs thermal expansion and contraction, reducing stress on equipment. - Vibration dampening: Helps to reduce vibration and noise in genset exhaust systems. - Durable construction: Designed to withstand harsh operating conditions. Design Considerations- Material selection: The choice of material depends on the specific application, temperature, and chemical resistance requirements. - Design pressure: The bellows design must be able to withstand the operating pressure and provide a reliable seal. - Movement and vibration: The bellows design must be able to accommodate movement and vibration in the genset exhaust system.

Sleeve Protection: Internal sleeves (liners) are often used to support the bellows' convolutions, reducing turbulence and protecting the bellows from erosion, particularly in high-pressure or high-velocity applications. High-Pressure Resistance: Engineered with extra-heavy-duty convolutions or external sleeves (pressurized jackets) to handle significant pressure, preventing the "squirm" (buckling) that can occur in standard bellow
